BURKUT supplies IONPURE (Xylem / formerly Evoqua) brand CEDI (Continuous Electrodeionization) modules across Turkey and the surrounding region. Alongside module supply, we also provide installation and commissioning as part of our technical service; BURKUT has over 25 years of EDI/CEDI experience since installing its first EDI system in 2000.
Below you can find the IONPURE CEDI module families (VNX, LX-Z, LX-X, LX-HI, LX-EU) and their model codes. If you are looking for an EDI/CEDI module, part or spare, you are in the right place.

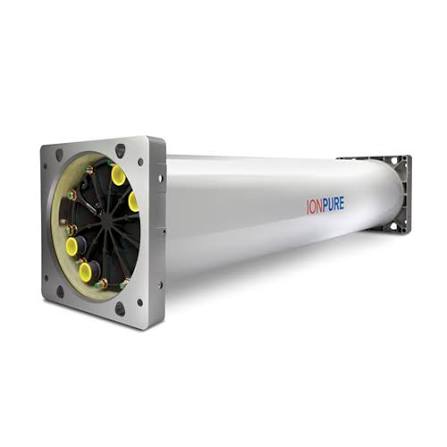

The old and new model codes for the IONPURE VNX series CEDI modules are listed in the table below. BURKUT provides installation and commissioning in addition to the supply of these modules.
| Old Model Code | Current Model Code | Technical Document |
|---|---|---|
| IP-VNX28-2 | IP-VNX28EP-2 | Datasheet (PDF) |
| IP-VNX50-3 | IP-VXN55EP-2 | Datasheet (PDF) |
| IP-VNX55-2 | IP-VNX55EP-2 | Datasheet (PDF) |
| IP-VNX50E-2 | Datasheet (PDF) | |
| IP-VNX50EX-2 | Datasheet (PDF) | |
| IP-VNX55HH-2 | Datasheet (PDF) | |
| IP-VNX15CDIT-2 | Datasheet (PDF) | |
| IP-VNX30CDIT-2 | Datasheet (PDF) | |
| IP-VNX-MAX-1 | Datasheet (PDF) | |
| IP-VNX-MINI-1 | ||

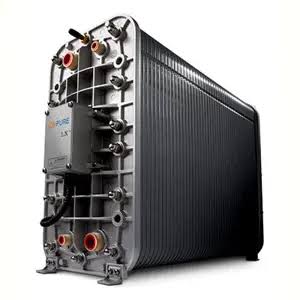

Note: all -1, -2, -3 and -4 revisions of the LX-Z family correspond to the same new LX-X model code shown.
| Old Model Family (LX-Z, all revisions) | Current Model Code (LX-X) |
|---|---|
| IP-LXM04Z-1 / -2 / -3 / -4 | IP-LXM4X-4 |
| IP-LXM10Z-1 / -2 / -3 / -4 | IP-LXM10X-4 |
| IP-LXM18Z-1 / -2 / -3 / -4 | IP-LXM18X-4 |
| IP-LXM24Z-1 / -2 / -3 / -4 | IP-LXM24X-4 |
| IP-LXM30Z-1 / -2 / -3 / -4 | IP-LXM30X-4 |
| IP-LXM45Z-1 / -2 / -3 / -4 | IP-LXM45X-4 |
LX-Z Datasheet (PDF) LX-X Datasheet (PDF)

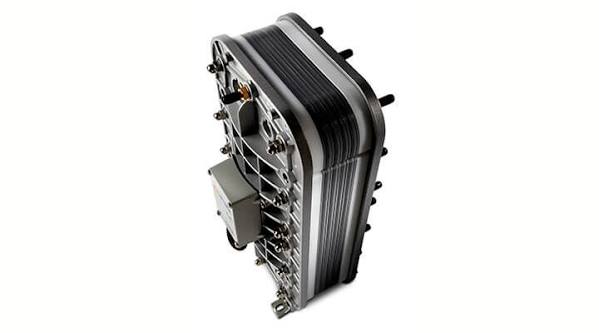

The BURKUT technical service team can carry out installation and commissioning of LX-HI series modules anywhere in Turkey.
| Model Code |
|---|
| IP-LXM4HI-3 |
| IP-LXM10HI-3 |
| IP-LXM18HI-3 |
| IP-LXM24HI-3 |
| IP-LXM30HI-3 |
| IP-LXM45HI-3 |
Official Xylem Datasheet (PDF)
BURKUT also provides supply, installation and commissioning for the LX-EU series high purity CEDI modules.
| Model Code |
|---|
| IP-LXM4EU-4 |
| IP-LXM10EU-4 |
| IP-LXM18EU-4 |
| IP-LXM24EU-4 |
| IP-LXM30EU-4 |
| IP-LXM45EU-4 |

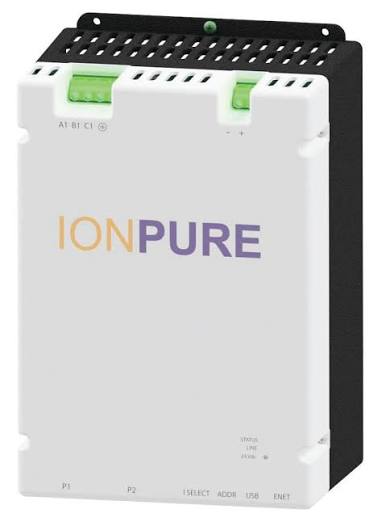

The IP-DC3PH600V-M1 DC power supply is a separate power unit for IONPURE CEDI modules.
IONPURE DC3 Power User Manual (PDF)
| Parameter | Value |
|---|---|
| Line Voltage (Auto Ranging) | 380 - 480VAC (3-Phase) |
| Operating Range | 323 - 528VAC |
| Phase | Three (3) - L1, L2, L3, Ground |
| Frequency (Auto Ranging) | 45-65Hz |
| Power Factor¹ | 0.92 |
| Parameter | Value |
|---|---|
| Amperage DC | 0.1-15 |
| Current Regulation | +/- 150mA |
| Max Compliance Voltage DC | 600 |
| Isolation (input to output) V RMS | 3750 VAC |
| Current and Voltage Retransmit | 4-20mA Analog |
| Power and Status Indicators | 3x LED |
| Current Limiting | Dip Switch |
Not sure of your model? You can send us a photo of the label on your existing module or contact us to request a quote and technical support. BURKUT does not only supply products but also provides installation and commissioning as part of its technical service.
IONPURE CEDI General Brochure (Xylem) PDF IONPURE LX CEDI Modules – Official Xylem Product Page
Electrodeionization systems produce continuous ultra-pure water. For processes where the required conductivity value is less than 5microSiemens/cm, the electrodeionization system can purify water up to 18 MOHM (0.05 microSiemens). It is particularly preferred in the energy, chemical, paint, and pharmaceutical industry. Correct pre-treatment prior the EDI system is crucial.
